Huepar Laser Detector for Line Level

!!! Please note NOT compatible with Rotary Laser Level !!!!!!

!!! This receiver can NOT be used with Huepar 9011G/9211G/FL360R/FL360G/8300G/B011G/B011R/FC011G/FC011R laser level !!!!!!

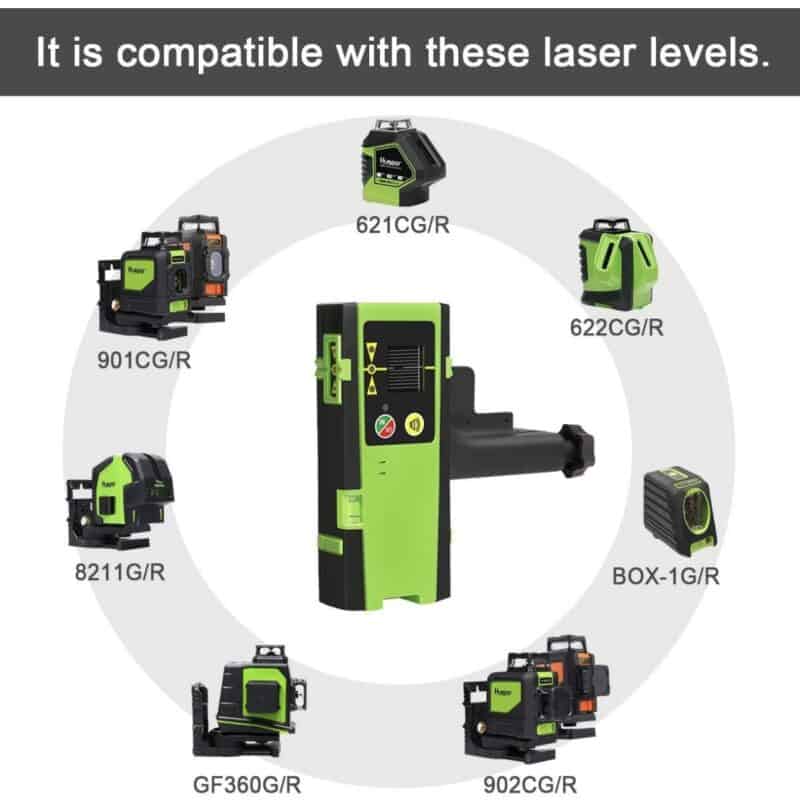

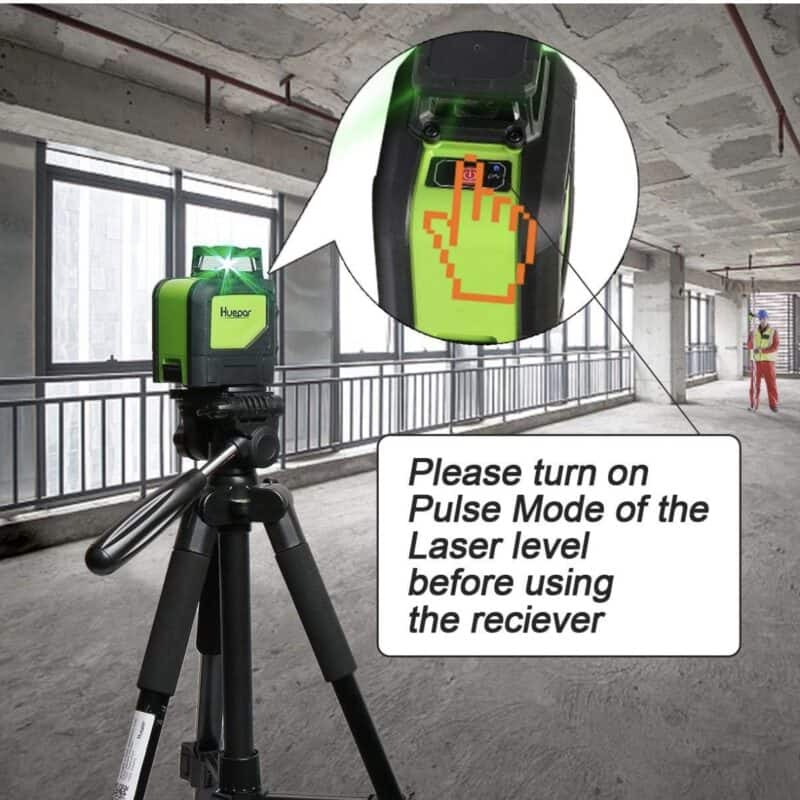

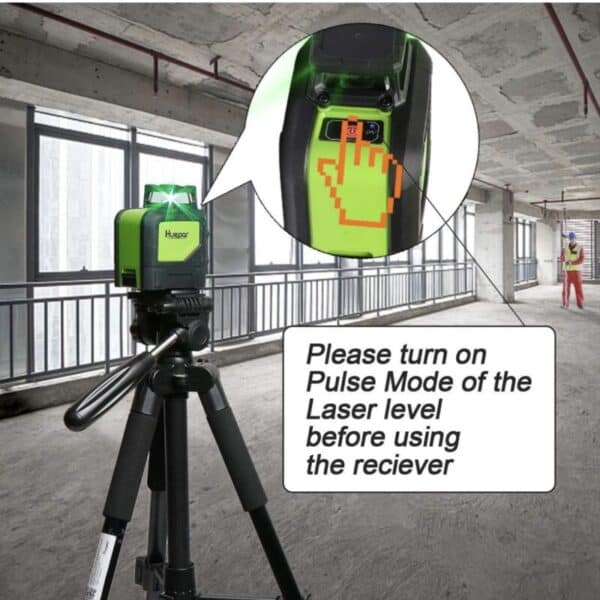

!!! Please be aware that this detector is only compatible with Huepar Line Laser Levels that feature Pulse Mode Function. !!!!!!

!!! If you are not sure whether it suits for your laser tool, please confirm with us before you place an order.

Laser Class: Class 2 (IEC/EN60825-1/2014) <1mW power output.

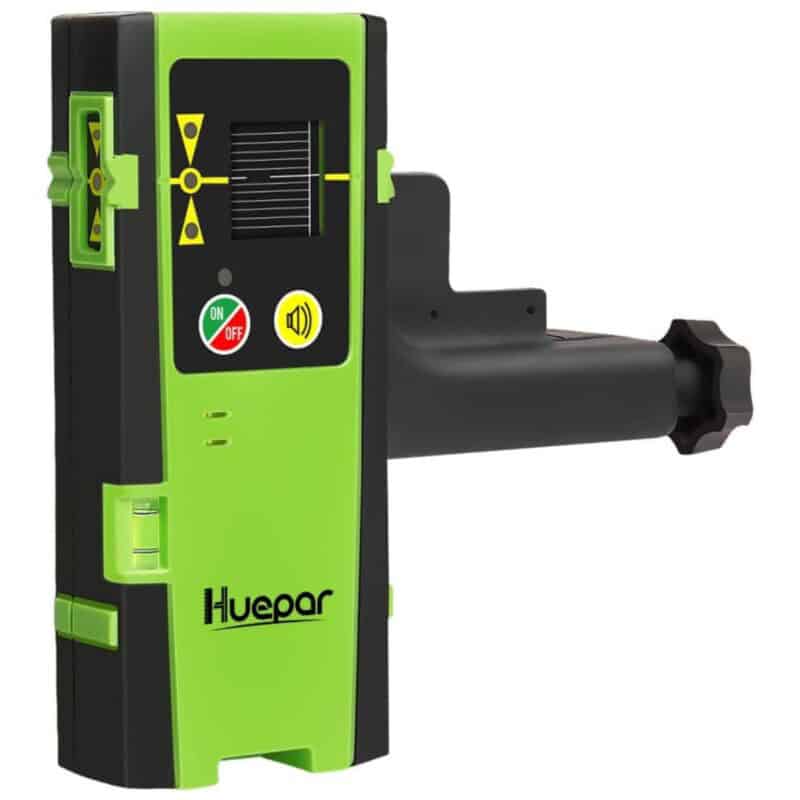

Huepar LR-6RG Laser Detector Specifications:

• Pulse duration: 50 μs ; PWM: 5:5
• PRF Pulse Repetition Frequency : 10KHz (Matched PWM and frequency, Line lasers can work with LR-6RG Laser Receiver)
• Display: Three-sided LED indicator display
• Leveling Accuracy: ±1.5mm(±1/17 In.)
• Laser Reception Window Width: 20mm(4/5 In.)
• Laser Reception Window Height: 20mm(4/5 In.)
• Working Distance: 60m(200ft)

• Operating Time: 70 hours
• Auto Power Off (with No Signal Detected): 8 min
• Power Source: 1*9V Dry Battery
• Operating Temperature Range: -10℃ to + 50℃
• Storage Temperature Range: -25℃ to + 70℃
• Dimension (LxWxH): 140.5mm×60mm×35mm(5.5 x 2.5 x 1.5 inches)
• Weight: 143g with battery

Package Includes:

1*Huepar LR-6RG Laser Detector

1*Heavy-duty clamp

1*9V Dry Battery
